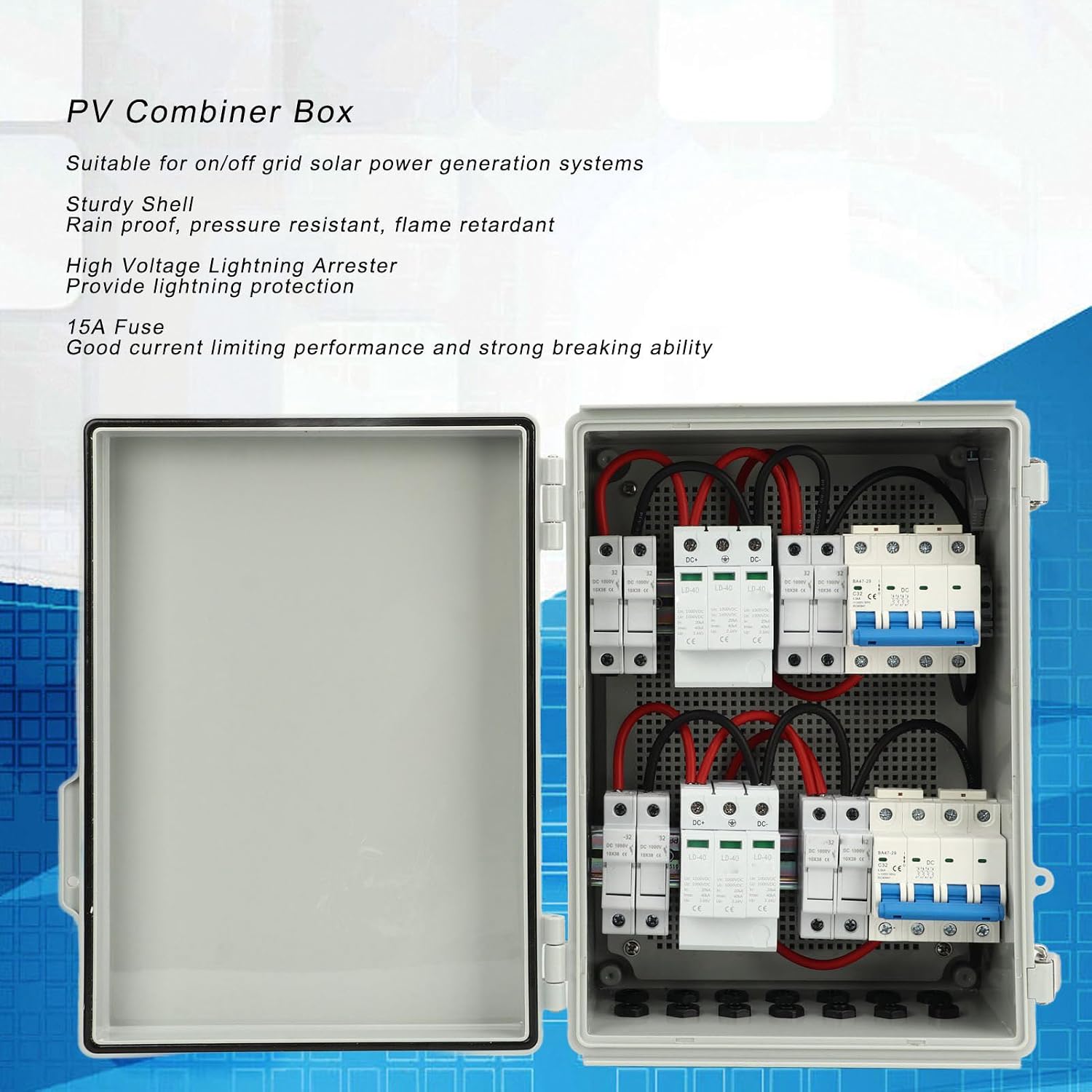

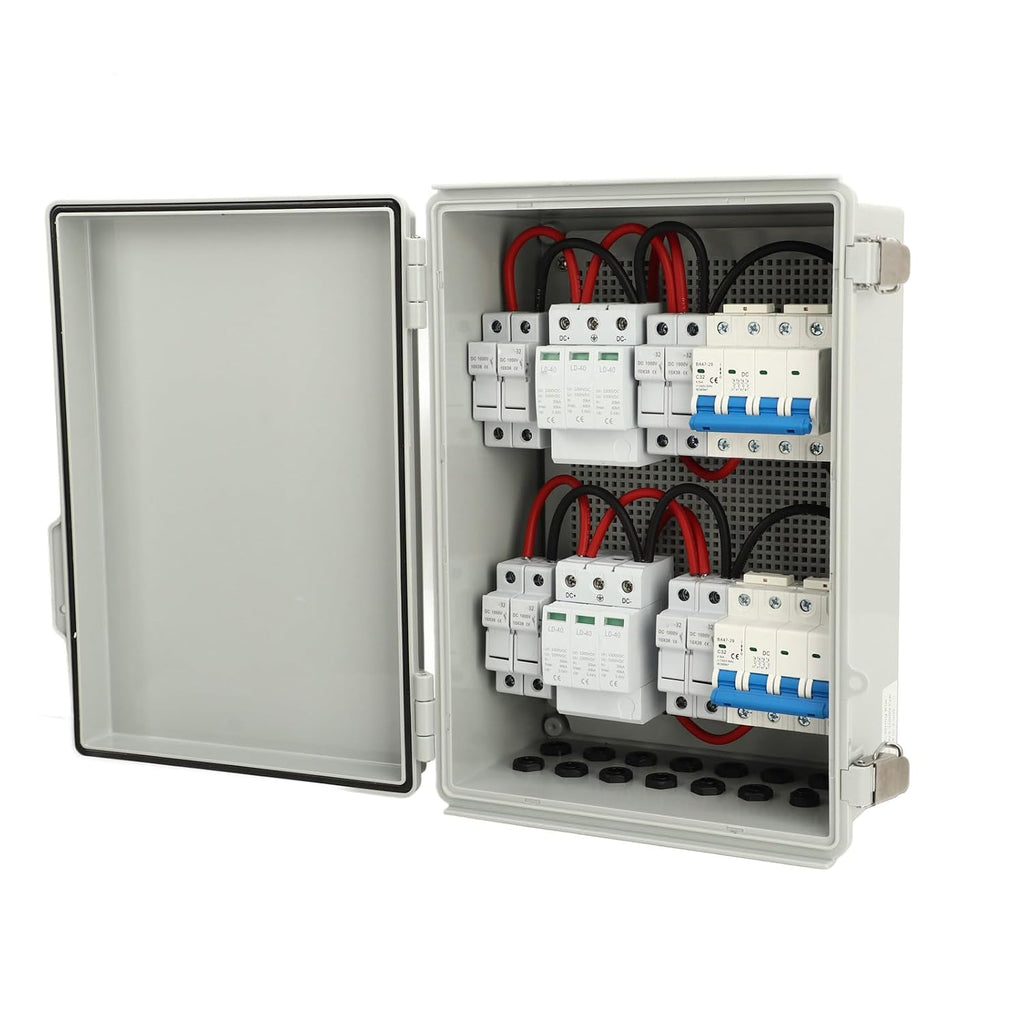

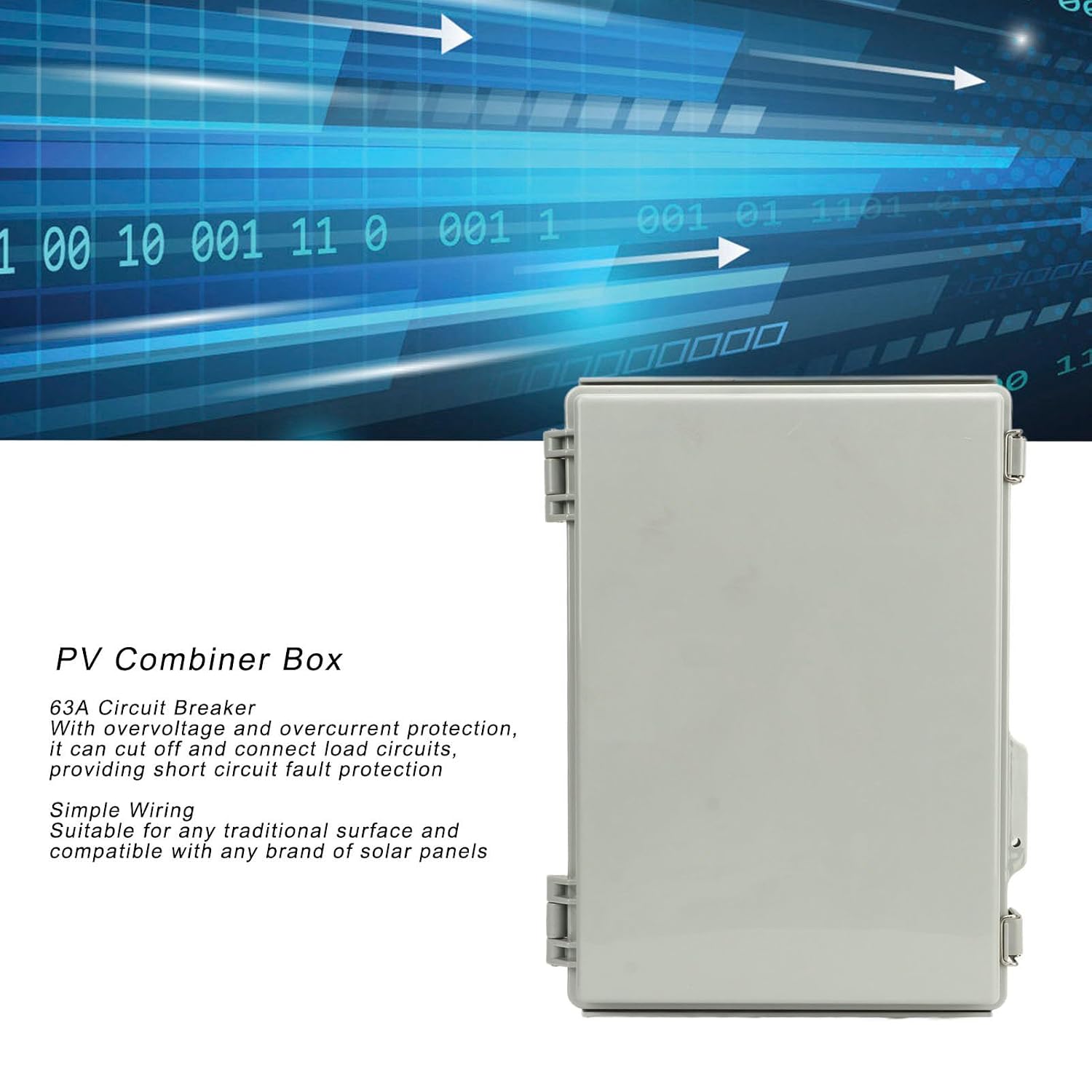

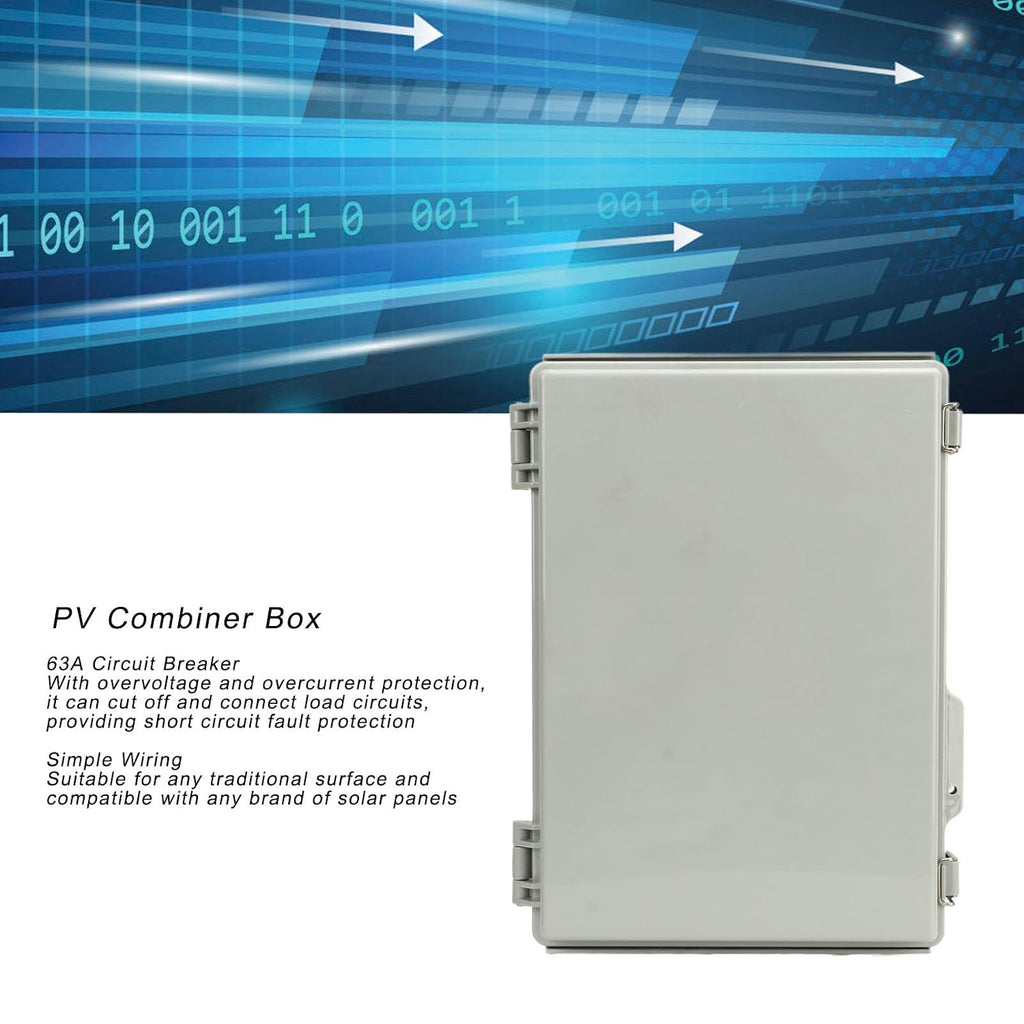

Solar PV Combiner Box, 4-String to 2-Output, DC 1000V, IP65 Waterproof, Wall Mounted System with DC Isolation Switch, for Solar Panel Installation

Specification:
Item Type: PV Combiner Box
Material: PC, ABS
System Maximum DC Voltage: 1000V
Maximum Input Current Per Group: 15A

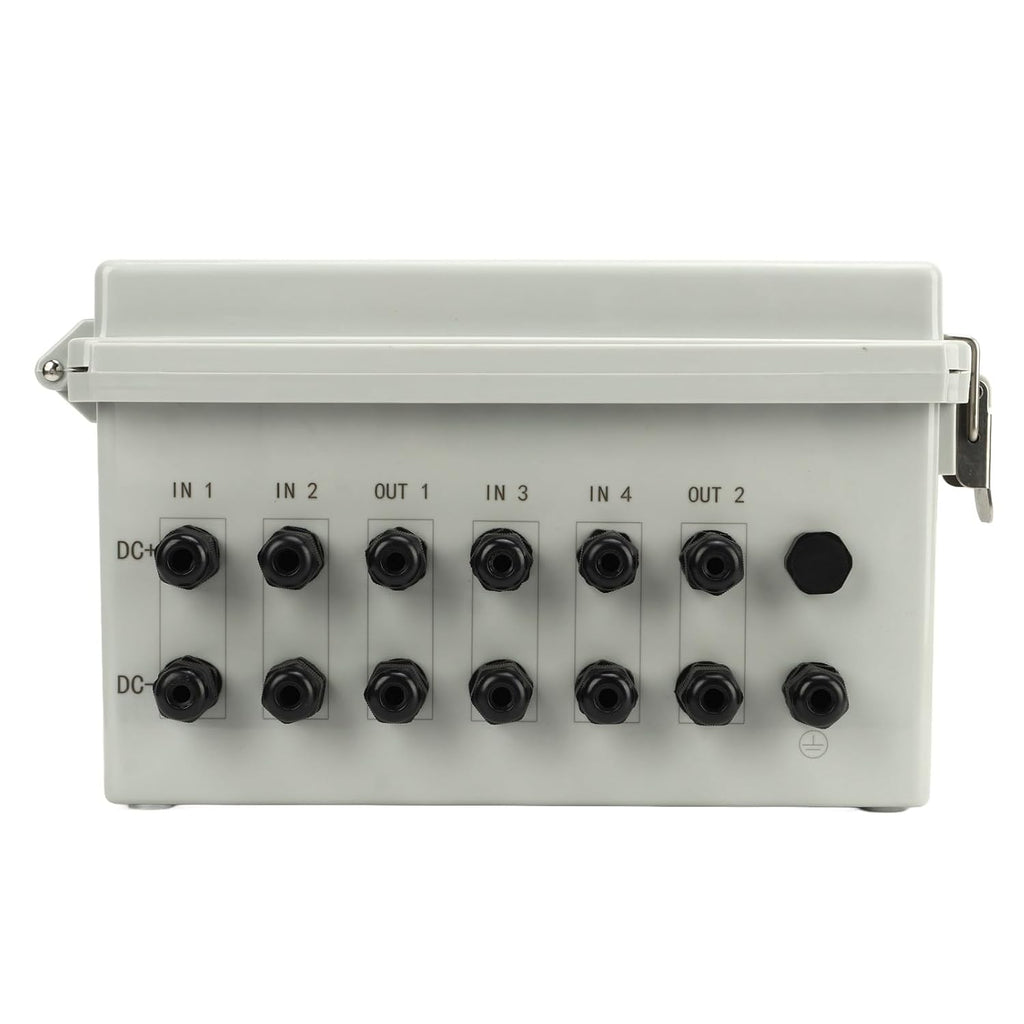

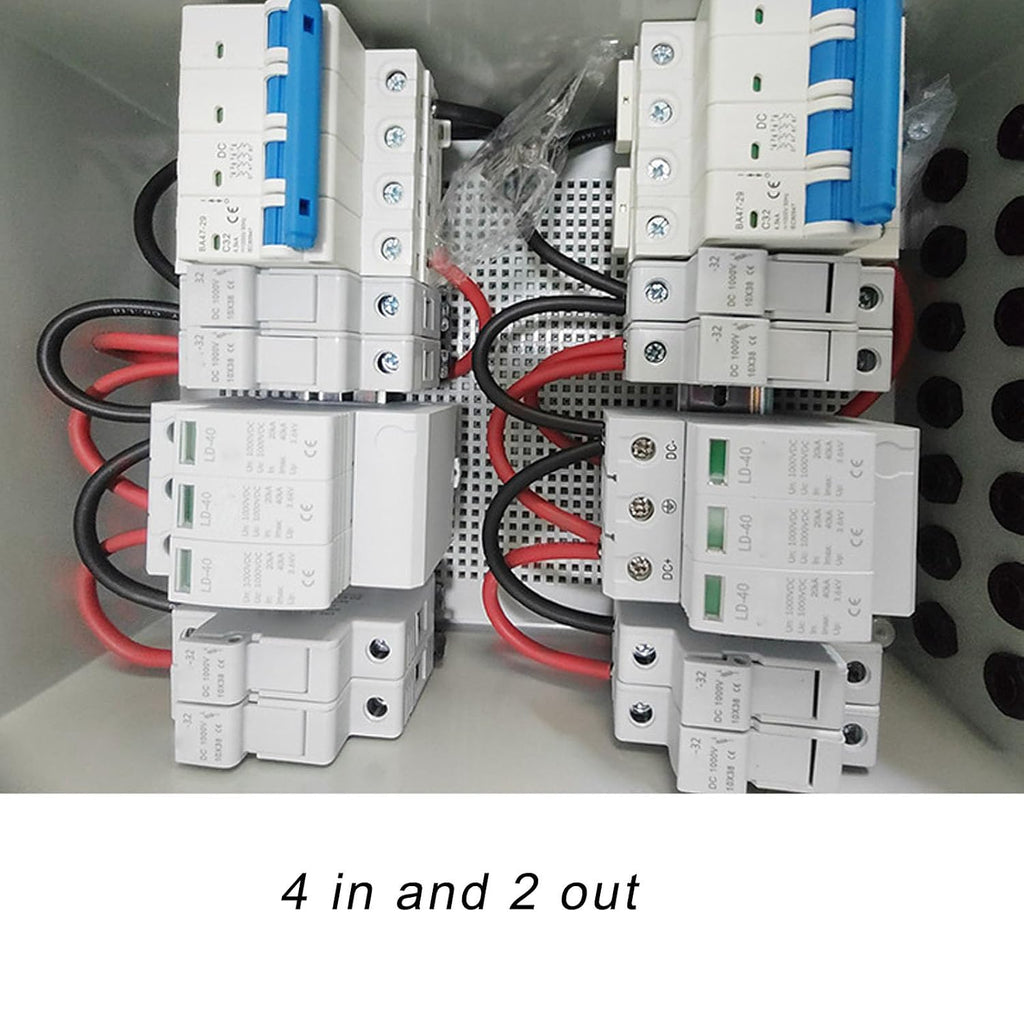

Maximum Input String: 4
Maximum Output Conversion Current: 32A
Output String: 2
Inverter Maximum Power Point Tracking (MPPT): 2

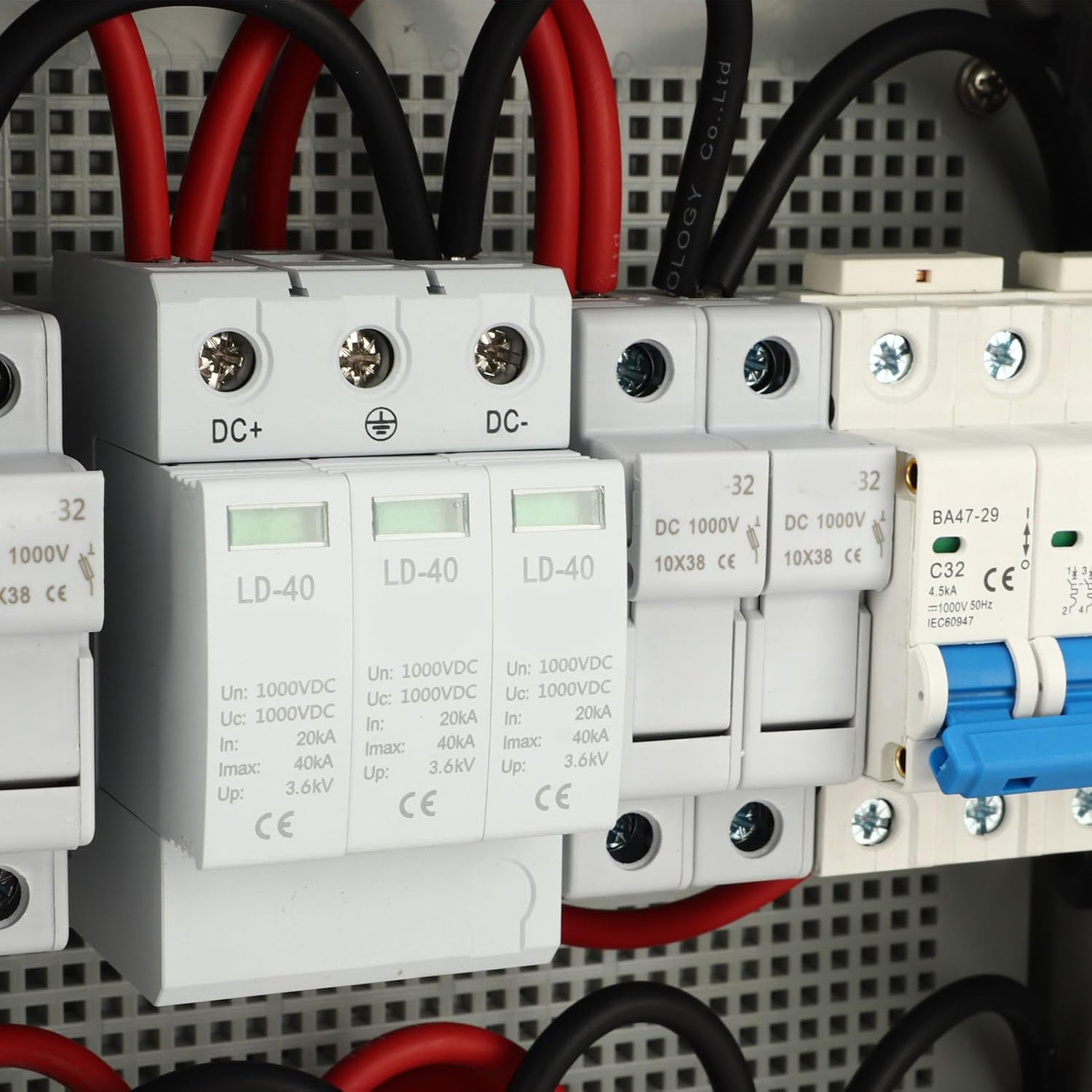

Nominal Discharge Current: 20kA
Maximum Discharge Current: 40kA
Voltage Grade: 3.6kV
Maximum Continuous Working Voltage: 1000V
Number of Poles: 3 Poles
Structural Feature: Push in Module
Waterproof and IP65
Box Material: Plastic
Installation Mode: Wall Mounted
Output Conversion: DC Isolation Switch
Waterproof Connector: Joint
DC : Yes
DC Protector: Yes

How to Use:
Directly install and use.

packing list:
1 x PV Combiner Box
4 x Gasket
4 x Long Screw
4 x Short Screw
4 x Anchor

Technical Details

• ASIN : ‎B0CBZM8VSD
• Date First Available : ‎July 16, 2023
• Item Weight : ‎8.86 pounds
• Item model number : ‎Hilitandc21af4vgq6
• Manufacturer : ‎Hilitand
• Package Dimensions : ‎14.88 x 11.46 x 7.4 inches
